PSU EVGA 750 GQ,1000 GQ 80+ GOLD 750W, Semi Modular, EVGA ECO Mode, 5 Year Warranty #Power Supply

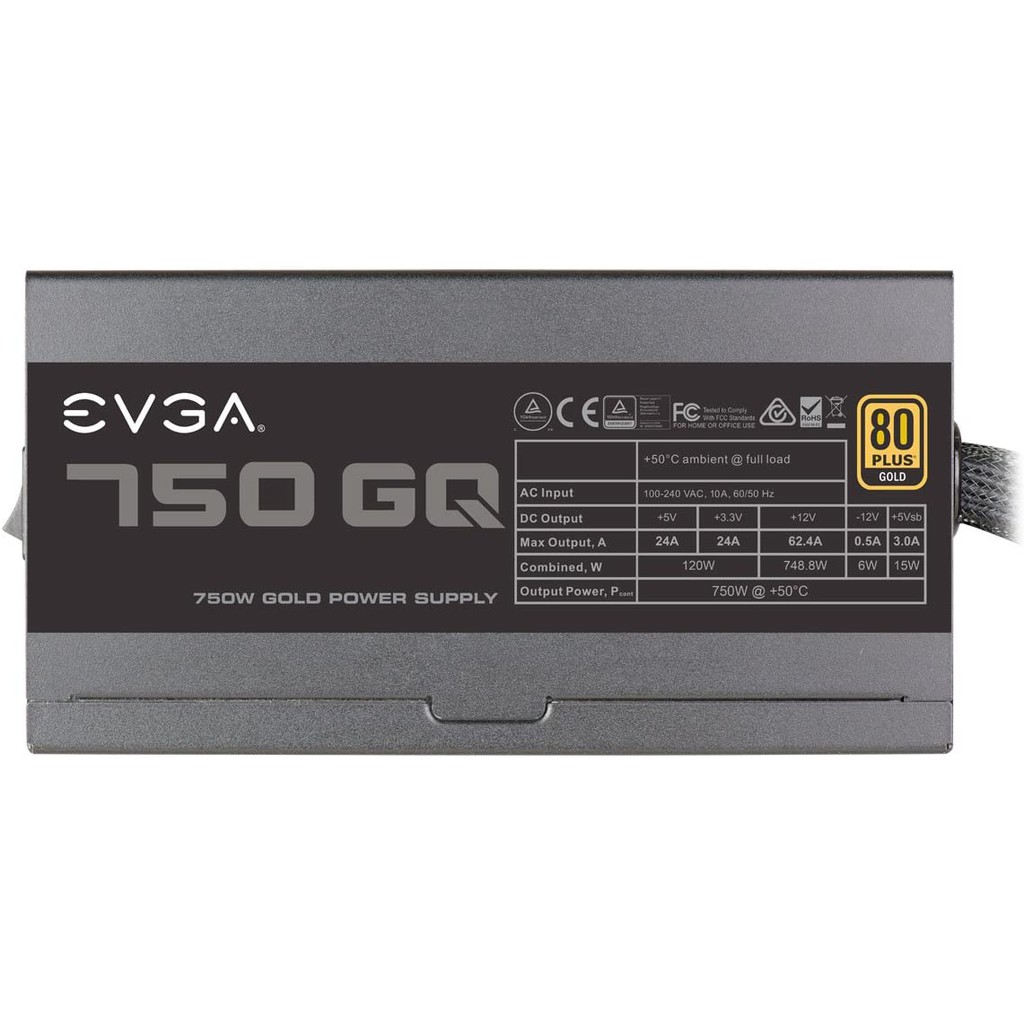

** 750W ** CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 650mm (m) PCIe Cable 2x 650mm, 750mm, 2x 650mm (m) SATA Cable 3x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m) Floppy Adapter 1x 100mm (m) AC Power 1x 1500mm (m) Modular Cable Type Modular CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 2x 8pin (4+4) PCIe 6x 8pin (6+2) SATA 9x Four-Pin Peripheral 3x Floppy 2x POWER SPECS AC Input 100 - 240 VAC, 10A, 50 - 60 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 24A 24A 62.4A 3A 0.5A 748.8W 120W 748.8W 15W 6W Total 750W @ +50C ADDITIONAL DETAILS Operating Temperature 0° to 50° C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Net Weight 7 lbs Size 85mm (H) x 150mm (W) x 165mm (L) Approvals TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing ----------------------------------------------------------- ** 1000W ** CABLE LENGTH ATX Cable 1x 600mm (m) EPS Cable 2x 650mm (m) PCIE Cable 4x 650mm, 750mm, 2x 650mm (m) SATA Cable 3x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm (m) Floppy Adapter 1x 100mm (m) AC Power 1x 1530mm (m) Modular Cable Type Modular CONNECTOR QUANTITY 24 Pin ATX 1x EPS (CPU) 2x 8pin (4+4) PCIE 10x 8pin (6+2) SATA 12x Four-Pin Peripheral 3x Floppy 2x POWER SPECS AC Input 100 - 240 VAC, 16A, 50 - 60 Hz Rail +3.3V +5V +12V +5Vsb -12V Max Output 24A 24A 83.3A 3A 0.5A 83.3A 120W 999.6W 15W 6W Total 1000W @ +50C ADDITIONAL DETAILS Operating Temperature 0° to 50° C Japanese Capacitors 100% ECO Mode Yes MTBF 100,000 Hours Net Weight 7 lbs Size 85mm (H) x 150mm (W) x 180mm (L) Approvals TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement Fan Size / Bearing 135mm Fluid Dynamic Bearing
