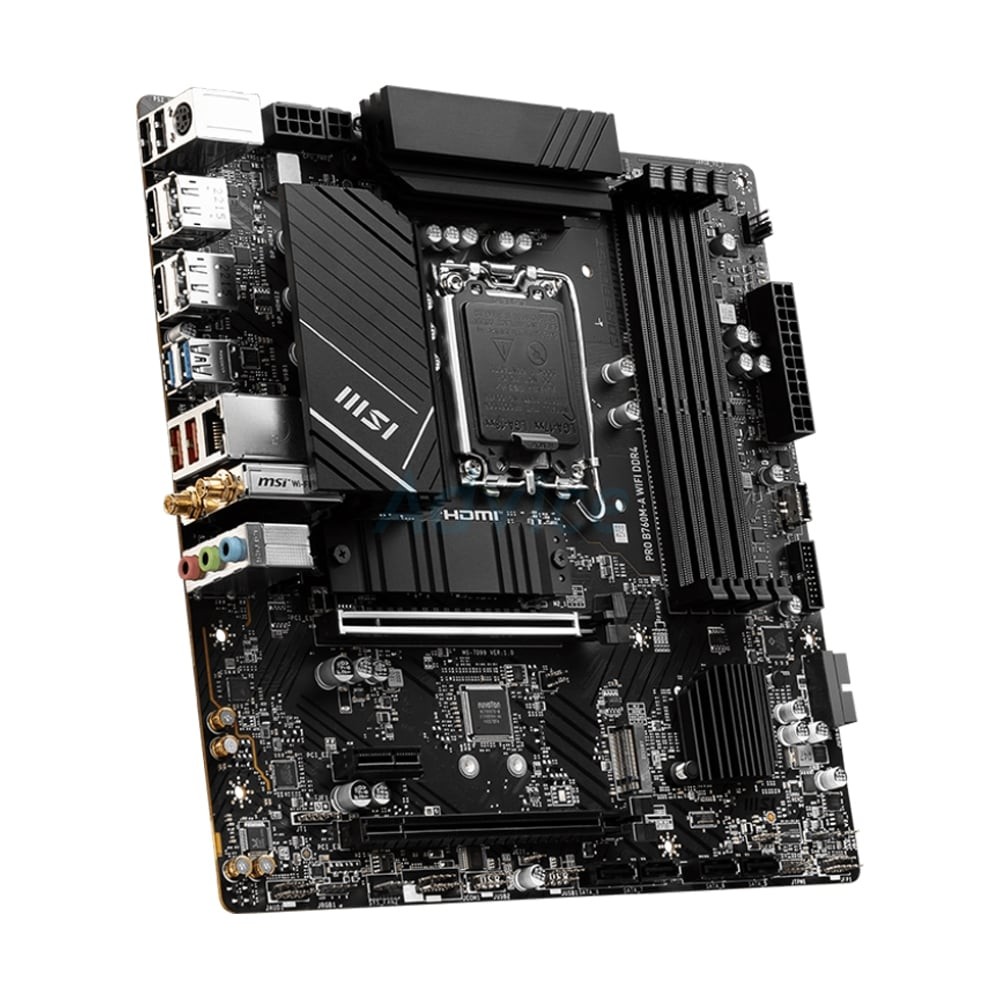

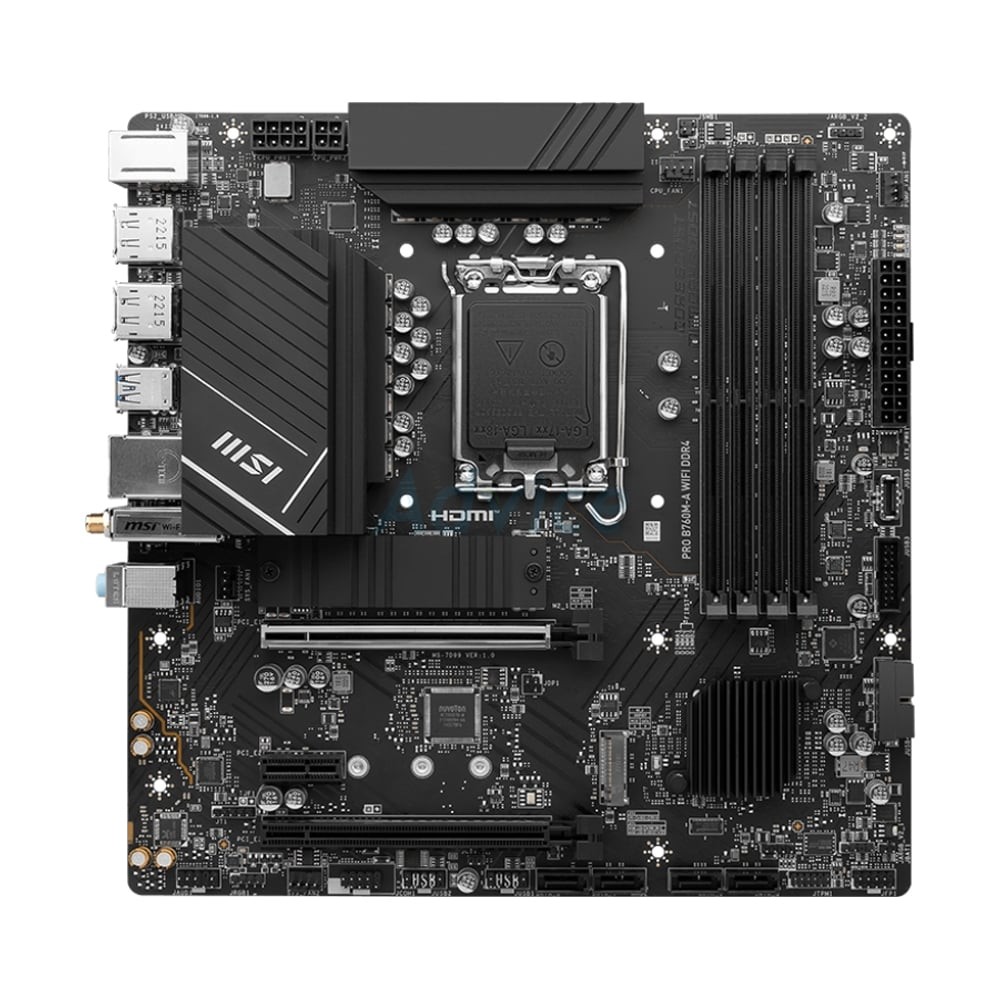

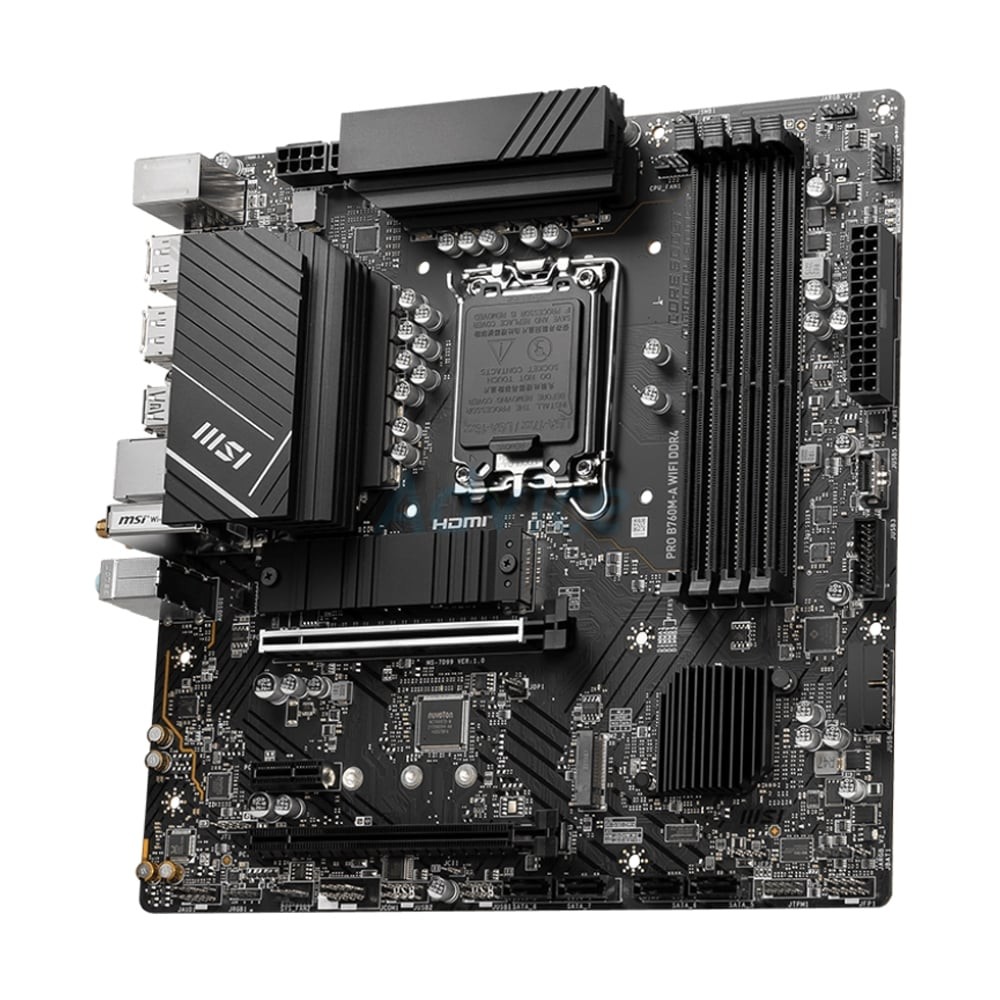

MAINBOARD (1700) MSI PRO B760M-A WIFI DDR4 - A0160690

Brand : MSI Model : PRO B760M-A WIFI (DDR4) CPU Support : Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 CPU Brand : Intel Socket : 1700 Chipset : B760 Memory Support : 4 x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Maximum Memory Bus : 5333 Graphics : 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. Multi Graphic Support : N/A Audio : Realtek® ALC897 Codec 7.1-Channel High Definition Audio Expansion Slots : 2 x PCI-E x16 slot (Qty) 1 x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) Maximum PCIe Version : PCIe 4.0 Storage : 2 x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G (Qty) * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices M.2 Storage Type Support : NVMe, SATA M.2 Slot : 2 USB : 2 x USB 2.0 (Rear) 4 x USB 2.0 (Front) 2 x USB 5Gbps Type A (Rear) 4 x USB 5Gbps Type A (Front) 1 x USB 5Gbps Type C (Front) 2 x USB 10Gbps Type A (Rear) Internal I/O Connectors : 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) 1 x CPU Fan 1 x Pump Fan 2 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Com Port (JCOM) 2 x Addressable V2 RGB LED connector (JARGB_V2) 1 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0) 4 x USB 2.0 ports 4 x USB 5Gbps Type A ports 1 x USB 5Gbps Type C ports Back Panel Connectors : 1 x Keyboard / Mouse 2 x USB 2.0 2 x USB 3.2 Gen 1 5Gbps (Type-A) 2 x USB 3.2 Gen 2 10Gbps (Type-A) 2 x DisplayPort 2 x HDMI™ 1 x 2.5G LAN Audio Connectors LAN : Realtek® RTL8125BG 2.5G LAN Wireless Data Network : Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. Form Factor : Micro ATX H/W Monitoring : N/A BIOS : N/A Special Features : LED FEATURE 4x EZ Debug LED Software Features : N/A Operating System Support : Support for Windows® 11 64-bit, Windows® 10 64-bit Package Contents : N/A Dimension (W x D x H) : 24.38 x 24.38 x 0.00 cm Net Weight : 0.00 Package Dimension (W x D x H) : 0.00 x 0.00 x 0.00 cm Gross Weight : 0.00 Volume : 0.00 ประกัน : 3 ปี
