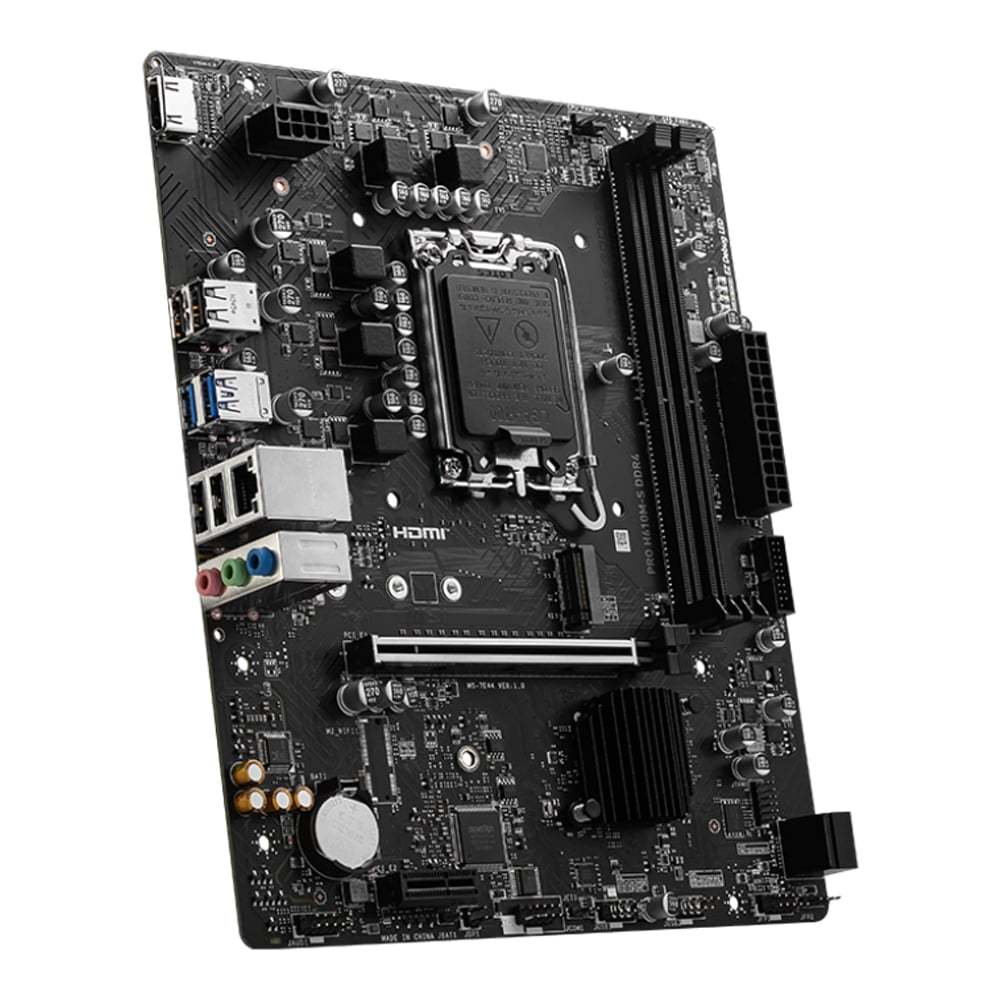

MAINBOARD (เมนบอร์ด) MSI PRO H610M-S DDR4 - INTEL SOCKET 1700 DDR4 MICRO-ATX

• Socket LGA1700 for Intel 12th, 13th & 14th Gen Processors • Intel H610 • DDR4, 2 x DIMM • 1 x HDMI • 1 x M.2 slot • 2 x SATA 6Gb/s ports • 1 x USB 3.2 Gen 1 5Gbps Type-A connector (front) • 2 x USB 3.2 Gen 1 5Gbps Type-A (rear) • 4 x USB 2.0 Type-A (rear) • 1Gbps LAN Model Brand : MSI Model : PRO H610M-S DDR4 CPU Socket : 1700 (12th Gen - Alder Lake) , 1700 (13th Gen - Raptor Lake) , 1700 (14th Gen - Raptor Lake Refresh) Wattage : 150W Chipset : Intel H610 Series : Celeron , Core i3 , Core i5 , Core i7 , Core i9 , Pentium Memory Slot : 2 Memory Type : DDR4 Max. Capacity : 64 GB Speed : 2133 , 2666 , 3200 , 3200 (OC) Graphic & Audio Graphic Requires a CPU with Integrated Graphics. — • 1 x HDMI 1.4 port with HDR, supporting a maximum resolution of 4K 30Hz*/** — * Available for the processor with integrated graphics. ** Graphics specifications may vary depending on the CPU installed. Audio Realtek ALC897Codec 7.1-Channel High Definition Audio Storage SATA 2 : - Port SATA 3 : 2 Port RAID : No M.2 • 1 x M.2 slot (Key M) (From H610 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/2260/2280 storage devices Port Expansion Slots Details • 1 x PCIe x16 slot (From CPU) - Supports up to PCIe 4.0 x16 — • 1 x PCIe x1 slot (From H610 chipset) - Supports up to PCIe 3.0 x1 Slot : 1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot Network LAN : Realtek RTL8111H 1Gbps LAN LAN Speed : 100/1000 Mbps Wireless : * Back Panel I/O Ports USB 2.0 : 4 Port USB 3.0 : - Port USB 3.1 : - Port Serial : - Port USB 3.2 : 2 x USB 3.2 Gen 1 5Gbps Type-A Port D-Sub (VGA) : - Port DVI : - Port HDMI : 1 Port DisplayPort : - Port Audio : 3 Port PS/2 : No Additional : No LAN : 1 Port Form Factor Form Factor : Micro-ATX Power Connector : 24 + 8 Pin Dimension : 20.0 x 23.6 cm Warranty การรับประกัน : 3 Years   EZ DEBUG LED Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.   COMPATIBILITY 14th / 13th / 12th Processors support   FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.     USB 3.2 GEN 1 Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.     LIGHTNING GEN 4 PCI-E MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
